This board is a replacement for the interconnect board found on Banzai Run.

Larger traces and pads for better reliability and longevity. Activity LEDs for each relay. Connectors are labeled in detail for easier troubleshooting.

---

Click on any image for a larger version.

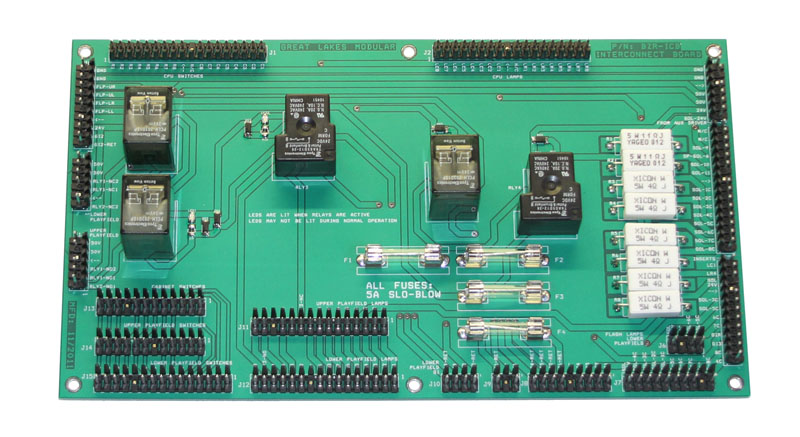

New board component side.

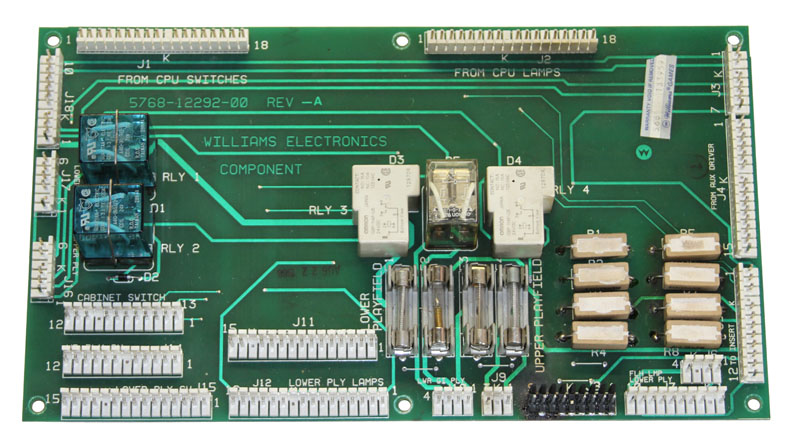

Old board component side. Board had badly burned GI header.

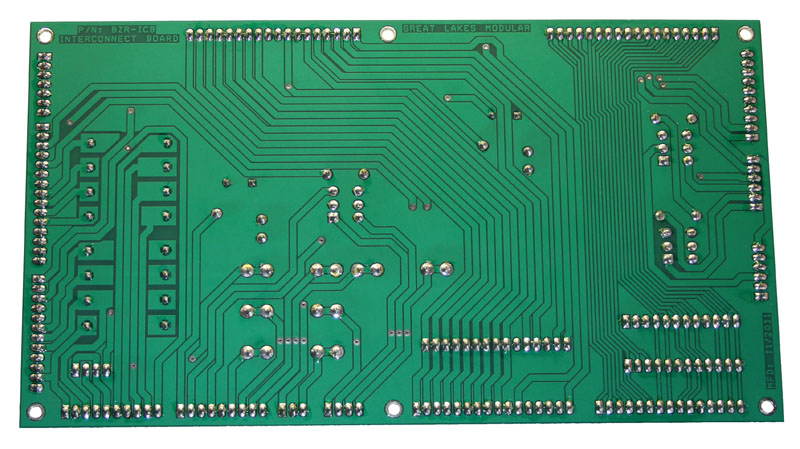

New board bottom side.

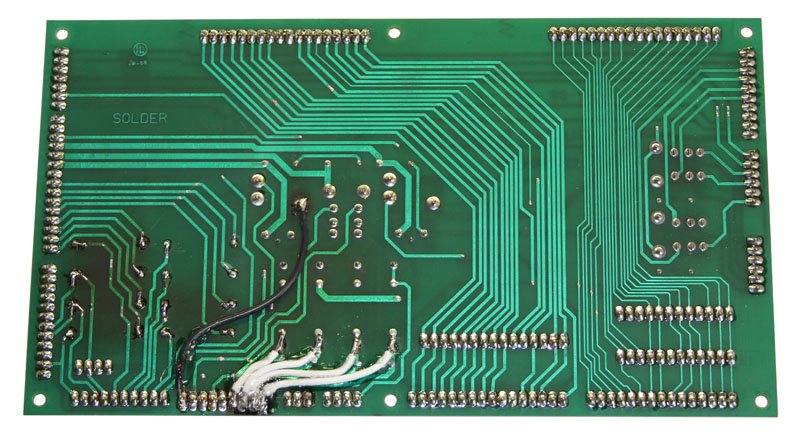

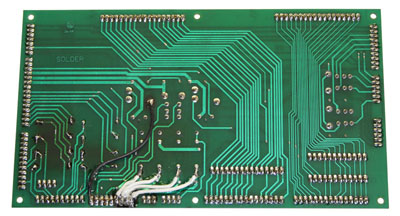

Old board bottom side. Traces to GI header repaired.

---

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Should you encounter any problems with the opto board, please email us first! We will try to help as best we can to get the board installed and working!
