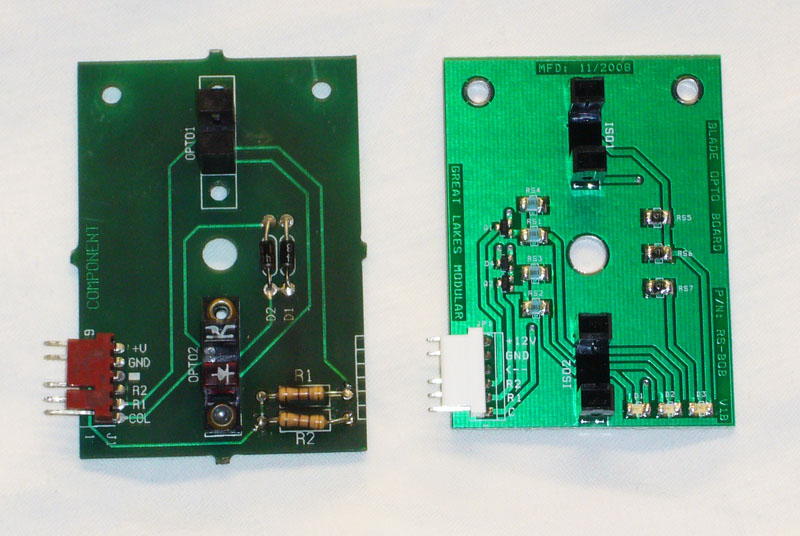

This board is a complete redesign of the opto PCB used on the dozer blade assembly of the Road Show pinball machine.

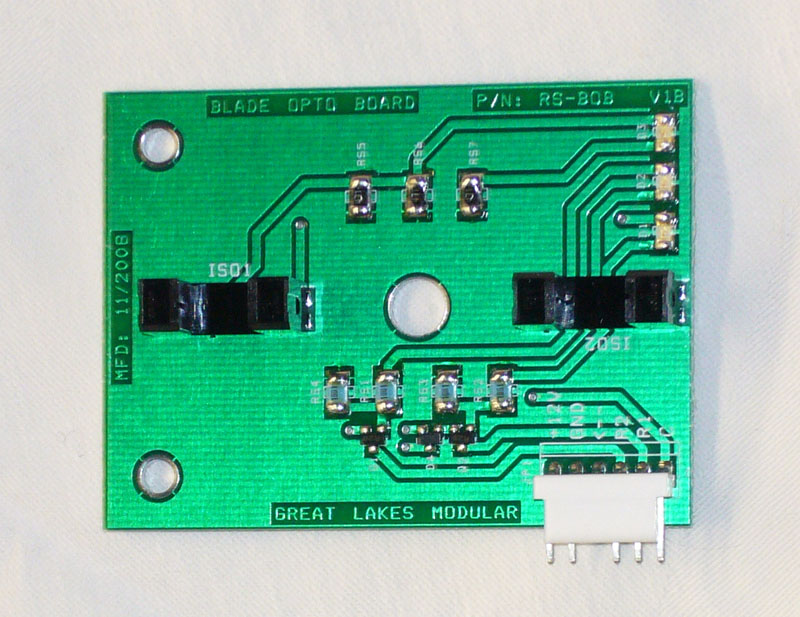

This board has two optical switches that help determine the position of the dozer blade in front of Ted's head on the playfield. The motor shaft on the assembly has a plastic disc with one blade which passes through the two optical switches. The game knows when the blade is up or down depending on which switch is interrupted.

Wide-slot optical switches eliminates any possibility of rubbing of the plastic interrupter. Larger traces and pads for better reliability and longevity.

Click on any image for a larger version.

---

Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Should you encounter any problems with the opto board, please email us first! We will try to help as best we can to get the board installed and working!
