WPC-FB2
Universal WPC Flipper Board (Type II)

This product has been replaced with an updated design. Please update your bookmarks to the following address:

http://www.greatlakesmodular.com/products/pinball/wpc_ufb.html

This page will redirect to the above page in 20 seconds.
Click on the link to be redirected now.


Cross-Reference

OEM P/N #

A-15894
A-17316

PCB #

5768-13469-00
5768-14577-01


Features

  • Replaces both Type 1 and Type 2 flipper boards!
  • No optos to get dirty or plastic interruptors to warp or break!
  • Virtually indestructable spring steel actuator for ultra long life.
  • Adjustable spring tension for the precise button feel you want!
  • Adjustable double-flip action for games with more than 2 flippers!
  • Visual status LEDs for easy adjustment and quick diagnostics.
  • User serviceable with transistors that are replaceable with thru-hole equivalents!


Click on any image for a larger version.

Picture 1

This board is a complete redesign of the flipper board found in all Williams/Bally games that use the Fliptronics system with Type 1 or Type 2 flipper boards. These include games as early as Getaway High Speed 2 and Twilight Zone, all the way through later WPC 95 games like Medieval Madness and Cactus Canyon!

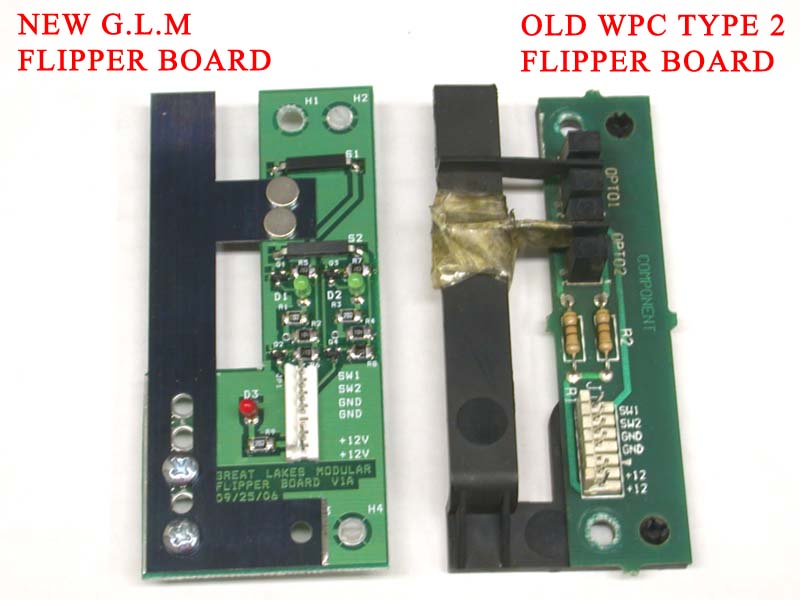

On many of the games that we've seen re-imported or coming off route, invariably the original flipper boards are in poor shape, or missing altogether! Over time, the plastic interruptors, (as used on the Type 2 boards seen below) warp or break. The optos get dirty and need cleaning. The boards themselves get hacked from poor repair jobs.

Picture 2

We set about to not only solve these fundamental design problems, but also to add in new features that just aren't possible in the original factory design! The result is something completely revolutionary!

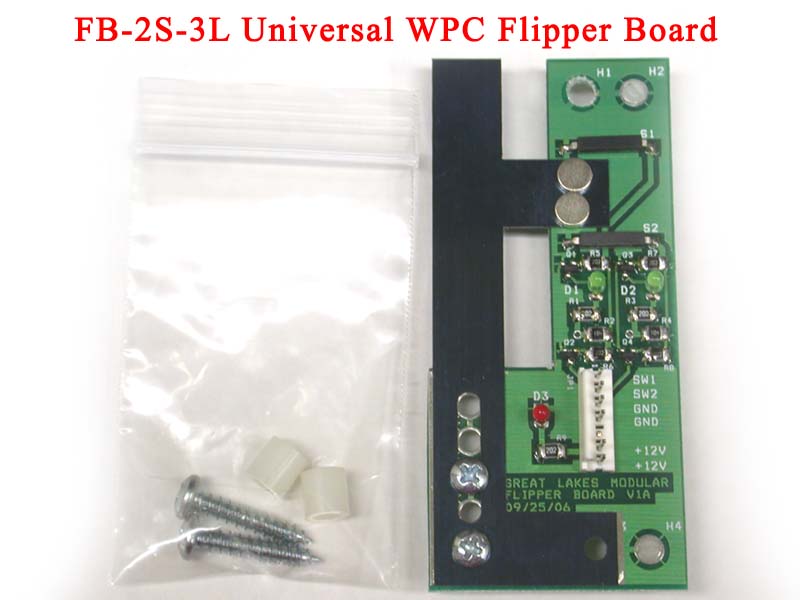

One of the exclusive features on this board is the adjustable tension of the spring steel actuator. The tension is adjustable from light to pretty stiff! The pictures above show the board configured for a "factory" feel. By moving the screw up or down, the button action can be made stiffer or lighter to your liking!

Another feature is the adjustable double-flip action! This action allows a player to operate lower and upper flippers independently by half-pressing the flipper button. With the factory boards, this action was not adjustable. With the new board, the delay between the flip can be adjusted, even eliminated (or reversed!).

Click on any image for a larger version.

Picture 3

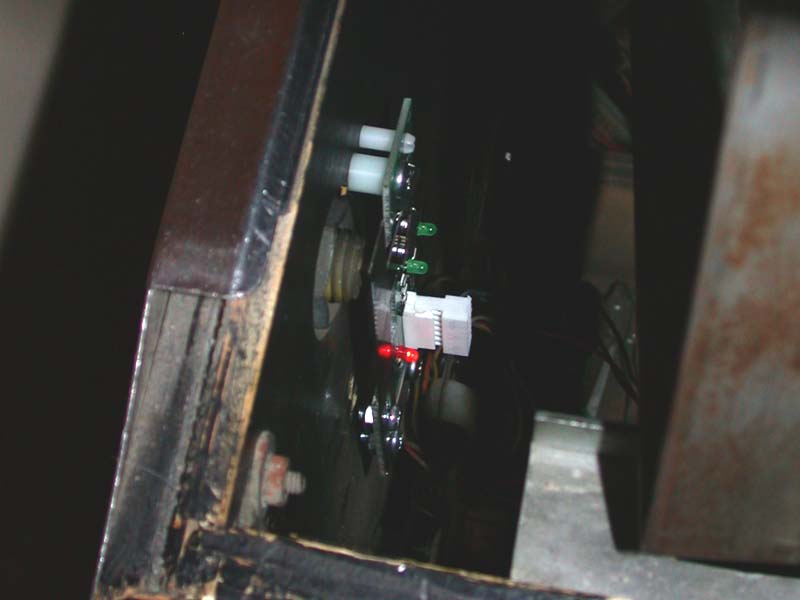

The above image shows the new flipper board installed in a Twilight Zone.


Picture 4

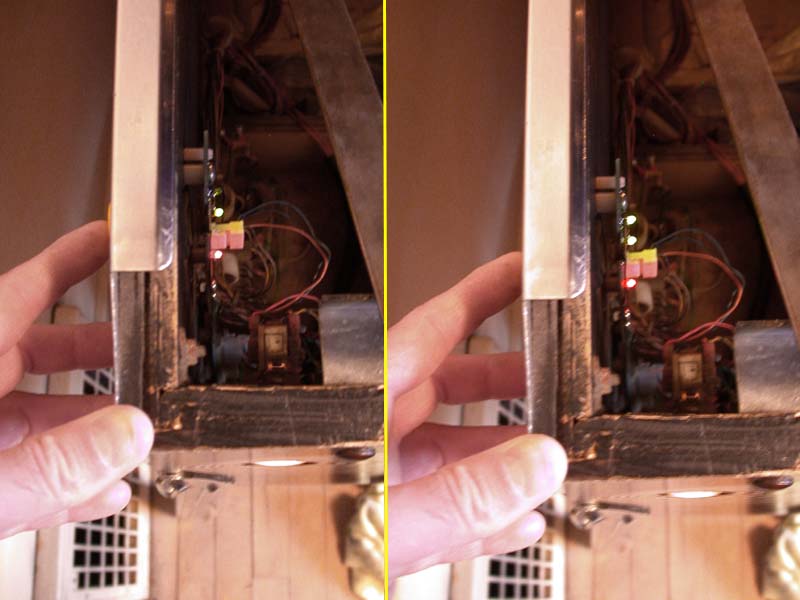

See the double flip in action, as the lower flipper activates, then the upper!


Picture 5

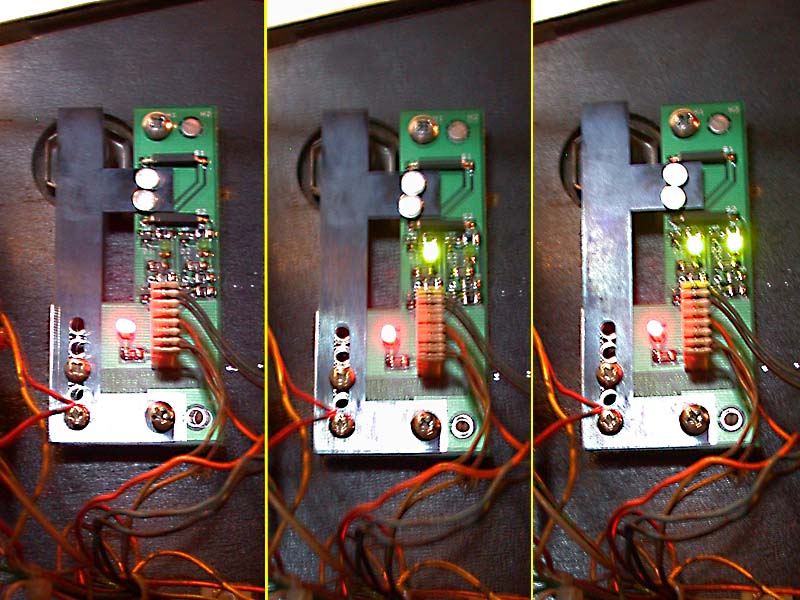

At rest (left), Half press - Lower flipper (center), Full Press - Both flippers (right)


Warranty Information

Great Lakes Modular offers a 6-month limited warranty for this product against all workmanship defects! This warranty does not cover any damage caused from installation, modification, or use!

Liability Information

This product was designed as an aftermarket retro-fit into specific pinball machines only! Because Great Lakes Modular has no control over the conditions surrounding the installation and use of this product, the end user shall assume all liability and agrees to fully indemnify Great Lakes Modular and its agents, for any and all damages resulting from the installation and/or use of this product.

Technical Help

Should you encounter any problems with the flipper board, please email us first! We will try to help as best we can to get the board installed and working!
